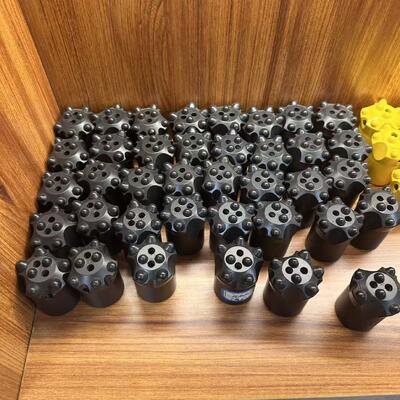

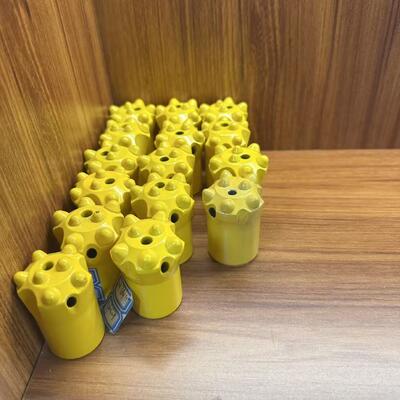

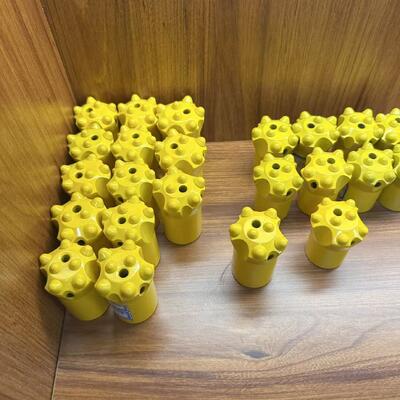

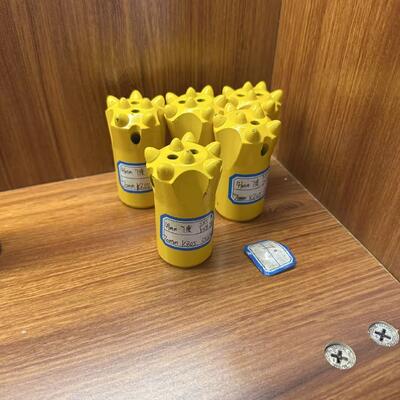

7 11 12 Degree Tapered Button Drill Bits Rock Drilling Tools For Quarry Mining
Button Drill Bits
High-quality button drill bits with premium tungsten carbide buttons deliver excellent wear and impact resistance as well as fast drilling speed.
Optimized flushing grooves ensure smooth chip removal, stable performance and long service life.
These bits are widely applied to rock drilling in mining, quarrying, tunneling and various construction projects.
Button Drill Bits Specification
| Color |
Black,Yellow,Blue,Red,Golden |
| Diameter |
Customized |
| Alloy Teeth |
5,6,7,8 |
| Degress |
7°11°12° |
| Length |
50,55,60,65,70,75,80 |
Button Drill Bits Product Feature
Our button drill bits adopt high-quality tungsten carbide buttons for excellent hardness and wear resistance,
with a heat-treated steel body to ensure strong impact resistance. Optimized flushing grooves remove rock
powder efficiently, and uniform button layout brings stable drilling and long service life. Easy to install and
widely compatible with drilling machinery, they are ideal for medium-hard and hard rock drilling in mining,
quarrying and construction.
Button Drill Bits Principle
The drill rig transmits high-frequency impact force and rotating torque to the drill bit through the drill steel.
Under impact action, the tungsten carbide buttons crush and crack the rock directly. Meanwhile, the bit rotates
continuously to cut new rock surfaces and form a regular borehole. High-pressure air or water flows through
the inner channel and flushing grooves of the bit to remove rock powder timely. The uniformly arranged buttons
and heat-treated steel body effectively disperse impact stress, enhancing wear and impact resistance for stable
drilling in hard rock formations.
