Product Description:

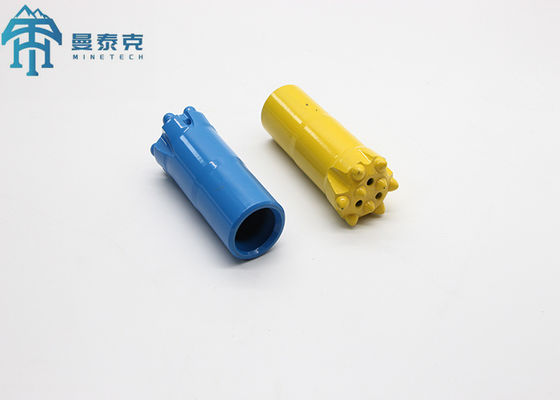

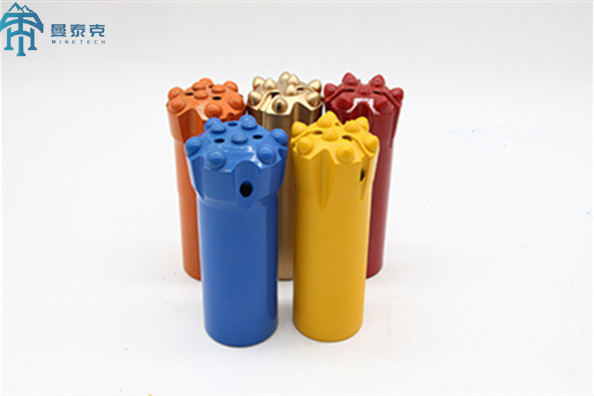

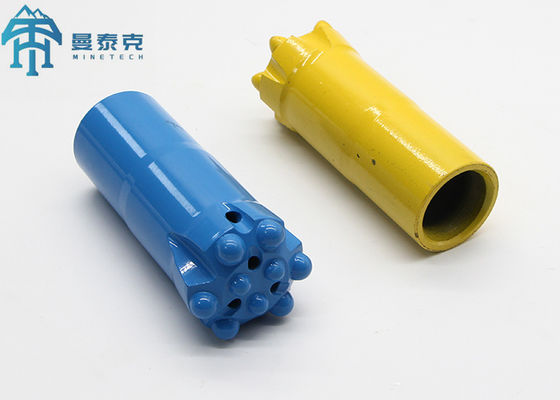

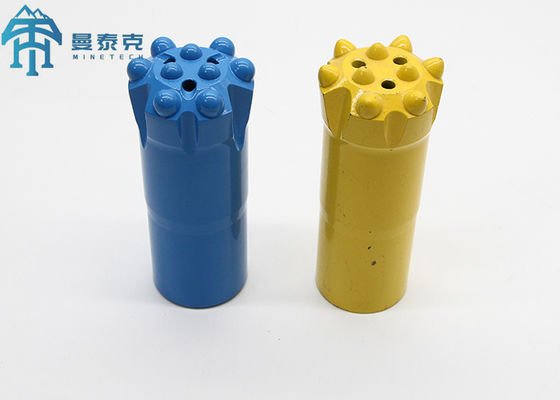

R32 thread button bits refers to a top hammer drill bit with R32 thread,which has a wide applications like construction, mining, geological exploration,etc. The thread drill bit is connected to the thread drill rod and the hydraulic drill rig to perform drilling, excavation and other operations. R32 is a common thread standard that represents the size and shape of threads.
The design of top hammer bits should consider the high strength and durability, while also requiring efficient cutting and long life. So button placement is an important part of designing and manufacturing bits, including location, number and shape of the button.
| Attribute |
Details |
| Face Type |
Flat Face, Drop Center, Uni-face |
| Package |
Carton box |
| Brand |
MTH |
| Thread Type |
R25, R28, SSR28, R32, SSR32, R35, SR35, R38, T38, T45, T51, ST58, ST68, SGT60 |
| Application |
Mining, Quarrying, Drifting And Tunneling, Shaft Drilling |
| Head Type |
Button Head |
| Material |
Tungsten Carbide and High Strength Alloy Steel |
| Diameter |
43 - 127mm |
| Button Shape |
Spherical, Ballistic And Conical |
| Treatment |
CNC Milling And Proprietary Heat Treatment Process |
Features:
1.The angle of the button affects how the drill bit makes contact with the rock. Proper angle helps reduce button bit wear and increases cutting efficiency.In some cases, different button may have different angles to ensure more efficient cutting and chip evacuation. The angle of R32 hammer bits gauge button normally are 30°,35°,40°,etc.
2. The number of teeth affects cutting efficiency and drill durability. More button may mean better drilling capabilities, but may also increase the cost and weight of the drill. Fewer buttons are typically used for softer rock, while more buttons are typically used for harder rock. For R32 rock button bits,we have 7 buttons,8 buttons,9 buttons,10 buttons and so on.
3.Buttons are usually spherical ,conical and ballistic. Different shapes may be suitable for different applications and may need modification as [er specific operating conditions.
Applications:
The Thread Button Bits are widely applicable to mining industry, tunneling and underground engineering, open pit, construction drill, blast industry, civil engineering operations,
road, gas line, pipe and trench projects, quarry work, rock anchoring and ground stabilization projects, water well industry, etc,.
Packing and Shipping:
Packaging and Shipping for Thread Button Bit
Packaging:
Thread Button Bit will be packaged in a sturdy cardboard box to ensure safe transportation and storage. The box will be sealed with tape to prevent any damage or loss of the product during shipping.
Inside the box, the Thread Button Bit will be wrapped in bubble wrap or foam padding to provide extra protection against any potential impact or vibration during transit. The product will also be securely placed in a plastic bag to prevent any moisture or dust from entering the packaging.
A label with the product name and specifications will be attached to the outside of the box for easy identification.
Shipping:
Thread Button Bit will be shipped via a reliable and reputable courier service to ensure timely and safe delivery to our customers. The shipping cost will be calculated based on the destination and weight of the package.
For international shipping, all necessary customs and export documents will be included to facilitate a smooth customs clearance process.
The estimated delivery time will be provided to customers upon placing their order. Customers can also track their package using the provided tracking number.
In case of any damage or loss during shipping, customers can contact our customer service team for assistance and a replacement or refund will be provided as per our terms and conditions.
